FOTODIOX PROSHIFT ADAPTER (with OLYMPUS 24mm lens)

Focal length: lens, shift adapter
Mount: Canon + Canon/Olympus adapter
Min focus distance: lens
Aperture: lens
Length (from Sony flange): 24mm + 3mm
Diameter: 67mm
Weight: 176gr.

Some pictures:

jpg_a6000/fotodiox_proshift_adapter_IMG_1745.jpg

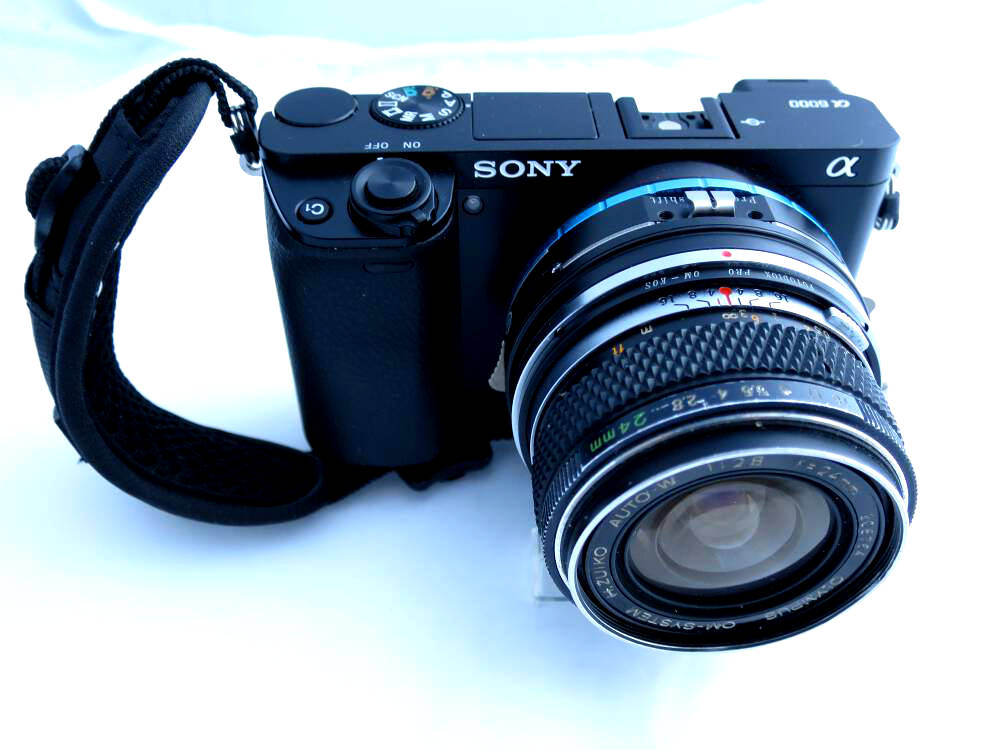

A6000 and the lens in neutral position.

jpg_a6000/fotodiox_proshift_adapter_IMG_1746.jpg

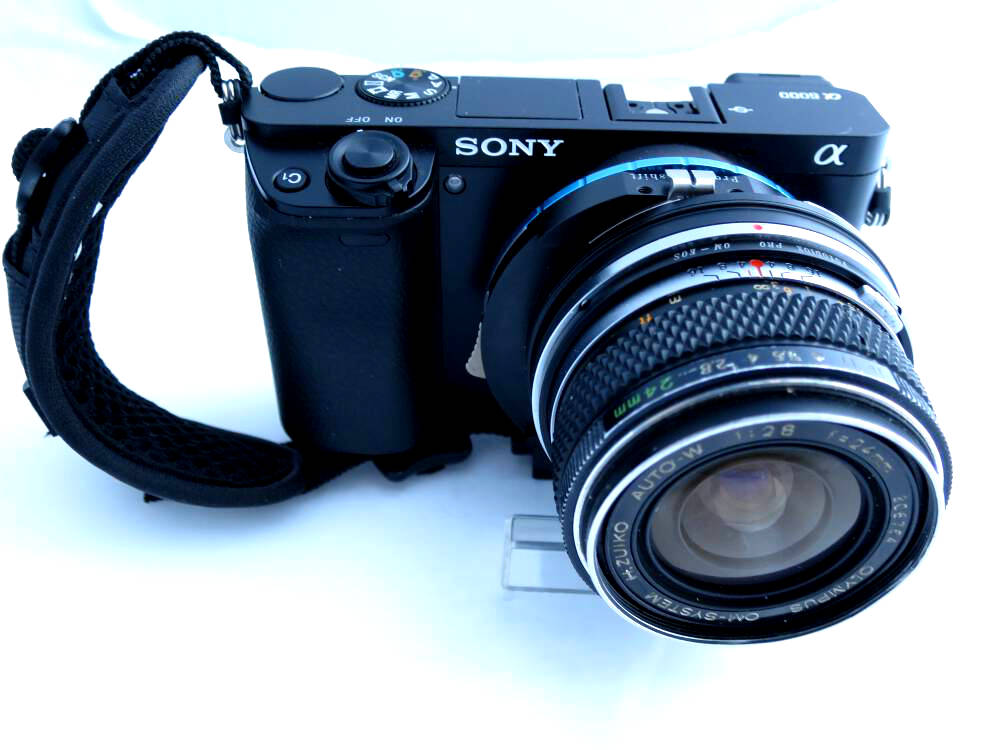

Shifted sidewards.

jpg_a6000/fotodiox_proshift_adapter_IMG_1747.jpg
Shifted down.

Sample pictures. Shift 10mm. You may click on the sample image for full resolution. The full resolution image opens in a new window, so you can keep it open for comparison.

jpg_a6000/w_fotodiox_proshift_neutral_DSC00274.jpg
Lens in neutral position, unshifted.

jpg_a6000/w_fotodiox_proshift_shift_down_DSC00275.jpg
Shifted upwards.

jpg_a6000/w_fotodiox_proshift_neutral_DSC00268.jpg
Lens in neutral position, unshifted.

jpg_a6000/w_fotodiox_proshift_shift_l_DSC00269.jpg
Lens shifted left.

jpg_a6000/w_fotodiox_proshift_shift_r_DSC00270.jpg
Lens shifted right.

jpg_a6000/w_fotodiox_proshift_shift_down_DSC00271.jpg
Lens shifted down.

jpg_a6000/w_fotodiox_proshift_shift_up_DSC00272.jpg
Lens shifted up.

jpg_a6000/w_fotodiox_proshift_shift_up_l_DSC00273.jpg
Lens shifted up and left.

This is a shift adapter. You can buy it adapted to several standard mounts, I chose Canon + Olympus as I own plenty of these lenses. The adapter can be shifted 10mm off axis and then be turned in any direction for perspective control. It covers full format, so shifting is not limited on an APS-C camera. The test was done with a full 10mm shift.

The adapter can compete to a certain degree with a real shift lens, which is very expensive. A genuine shift lens might be better, but you have only one focal length at a high price. The adapter is moderatly priced. It is very sturdy hence its weight. It is easy to use. It's fun to experiment with its possibilities.
