STAEBLE KATA 1:2.8/45

Focal length: 45mmm,
APS-C equiv. 63mm
Mount: M39 Paxette (see last paragraph)
Aperture: F 2.8 - F 16
Min focus distance: 0.65m
Length (from flange): 14/17mm
[+ 25mm for the adapters], rear element protrudes 14mm.
Diameter: 46mm
Weight: 51gr.

Some pictures:


jpg_a6000/45mm_staeble_IMG_1405.jpg
A6000 and the lens.

The grip is a Case Logic grip attached to a Manfrotto 200PL style quick release plate, a special plate made by HorusBennu for their grips. It allows you to use the camera, with the grip attached, on a Manfrotto RC2 Rapid Connect Adapter.

Sample pictures: You may click on the sample image (except closest focus) for full resolution. The full resolution image opens in a new window, so you can keep it open for comparison. Focus is on the satellite dish to the right of the big solar panel near the center of the photo.

jpg_a6000/w_45mm_staeble_f2_8_DSC00217.jpg
F 2.8. Lens is off focus.

jpg_a6000/w_45mm_staeble_f8_DSC00218.jpg
F 8.

jpg_a6000/w_45mm_staeble_f16_DSC00219.jpg
F 16.

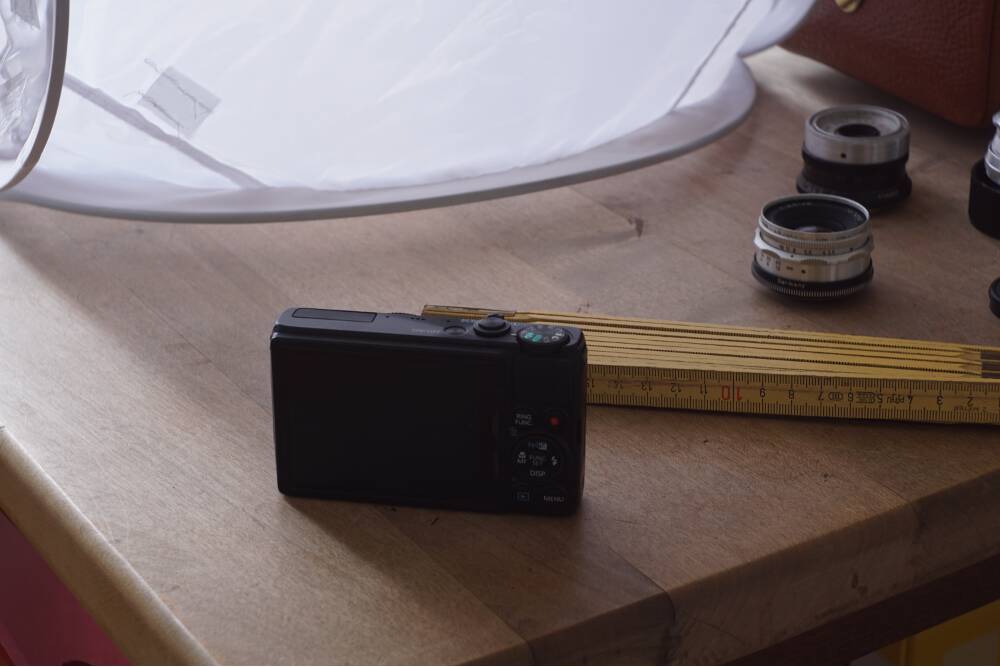

jpg_a6000/w_45mm_staeble_cl_f8_DSC00220.jpg
Closest focus is 0.65m from outermost edge of the lens. Focus on the program wheel of the camera.

This old lens was sold for Braun Paxette cameras. This one is a bit off focus. I will probably try later with a different adapter. Wide open it's a bit soft. Stopped down it's fine. At F16 you can see what it is capable of, inspite of slightly being off focus. At F 16 there is little or no diffraction, which is much better than other lenses. Diffraction is a problem of the APS-C sensor size, not the lens (see comparison page). The sample pictures were taken on a dull day, so there is less contrast. It's astonishing, how short and light the lens is, even if you add the adapters. A nice very small lens.

The M39 Paxette Mount is the same thread as ordinary M39 (Leica), but  a different flange focal distance.
Please refer to the Paxette lens page.
